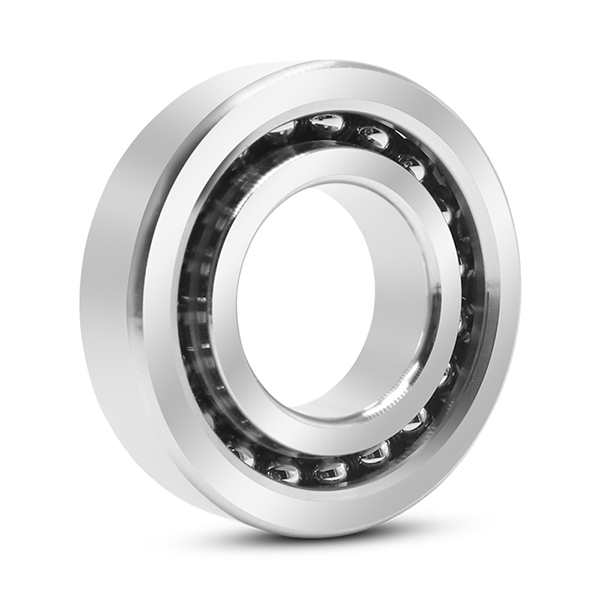

Ball screw support bearing 15TAC47C (15x47x15mm)
type:
15TAC47C (15x47x15mm)
Product Detail
Description:
Ball screw support bearing 15TAC47C (15x47x15mm)
| d(mm) | 15 |
| D(mm) | 47 |
| B(mm) | 15 |
| r(min) | 1 |
| r1(min) | 0.6 |
| Recommended angle(cc) | 2.2 |
| Contact angle(degree) | 60 |
| Limiting speeds(grease) | 6900 |
| Limiting speeds(oil) | 9200 |
| Mass(kg) | 0.146 |
Ball screw bearings 15TAC47C (15x47x15mm) are a kind of angular contact ball bearings, with a contact angle of 60 degrees, which can withstand higher axial forces, and have higher accuracy and rigidity.
We supply the 15TAC47C (15x47x15mm) regularly . The sealed type 15TAC47CDDG
Ball screw support bearing 15TAC47C, we mainly supply the super precision bearing , rolling mill bearing etc, covered all the kinds of models. Welcome to list your request here for quick response.
